Commercial-Grade Gyroscope

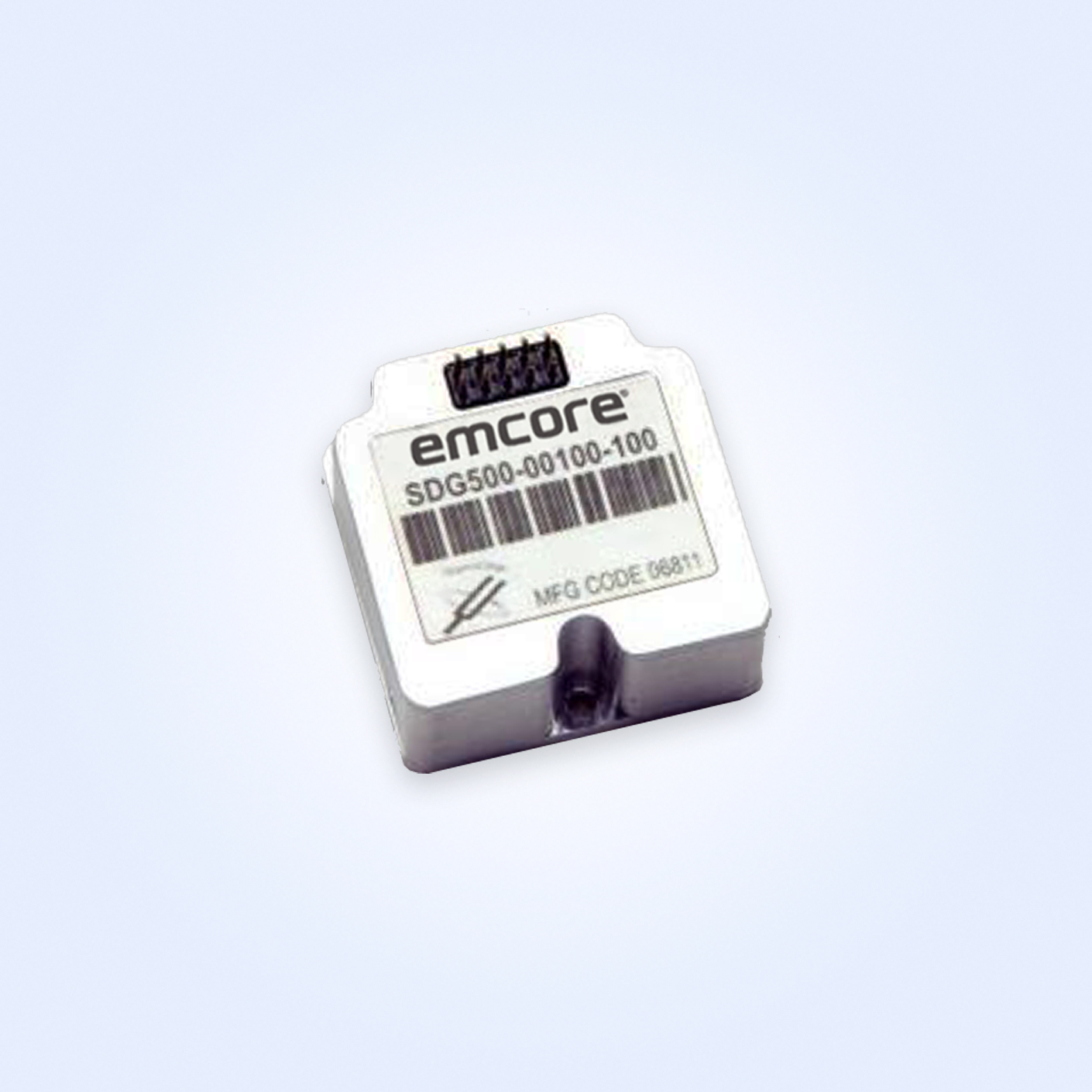

Featuring performance advantages over other gyros in its class, the SDG500 is a completely self-contained angular rate sensor. Utilizing a Quartz MEMS inertial sense element housed in a compact, rugged aluminum case, it provides virtually unlimited life.
An on-board temperature sensor allows the user to enhance performance via thermal modeling and correction. With a simple DC input and high-level DC output, the SDG500 will integrate quickly and simply into your designs.
System Performance
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Standard Range | ±100°/sec |
| Input Voltage | + and - 10 to 15 Vdc |
| Scale Factor | 0.050 Vdc/°/sec |
| Bias Stability | <20º/hr (In-Run at constant temp. Std. Dev.) |
| Output Noise ( DC to 100 Hz) | <0.005º/sec./√Hz (DC to 100 Hz) |
