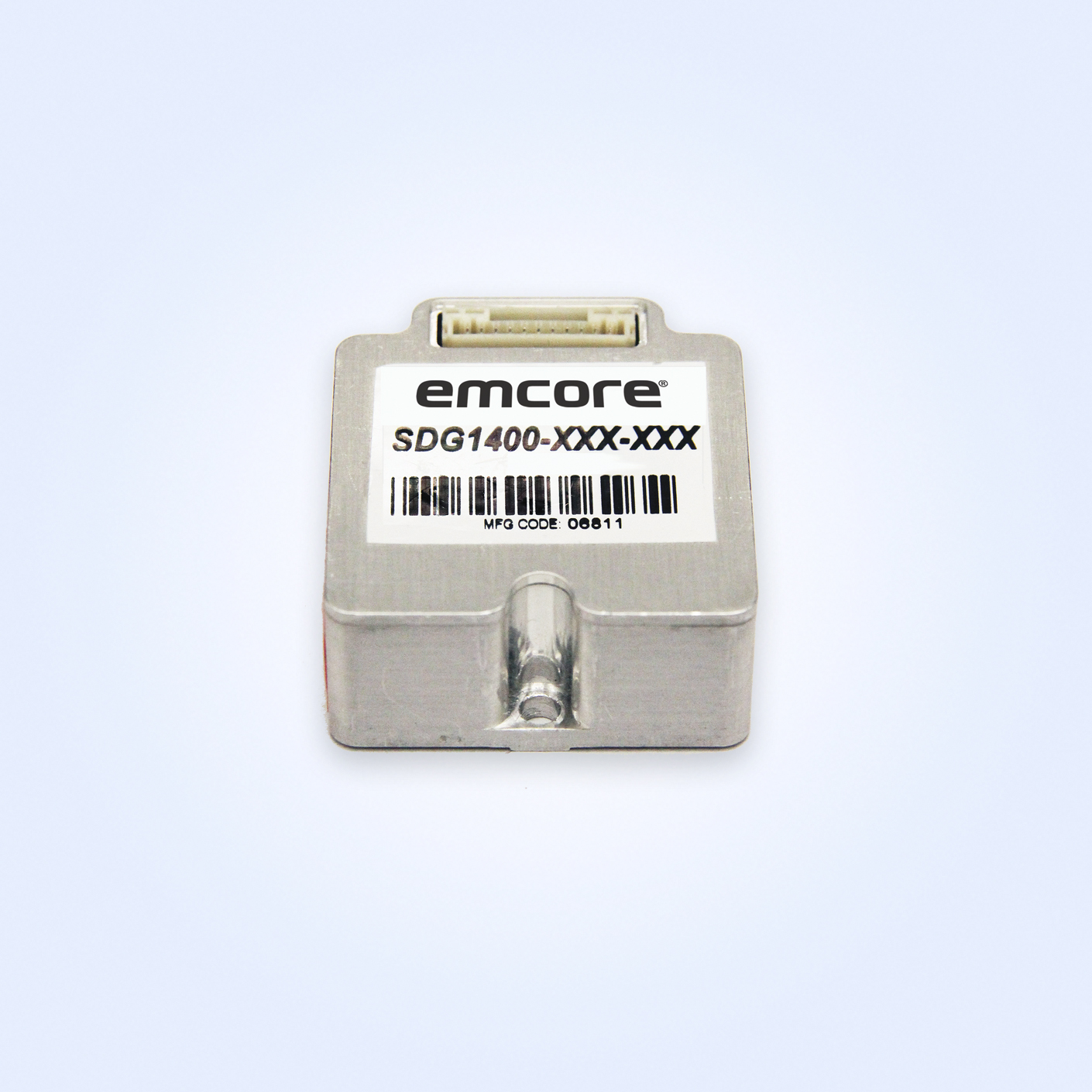

High-Performance (Commercial Grade) Gyroscope
For the most demanding commercial and aerospace applications, the SDG1400 offers class-leading performance and stability in a small, rugged package. Utilizing an advanced Quartz MEMS inertial sensing element, it provides superior bias stability and repeatability.
The SDG1400 has no moving parts and exceptional MTBF performance. A commercial, off the shelf product, it gives fast start-up, very low noise and high bandwidth, making it ideal for critical applications in commercial and aerospace applications. The SDG1400 is completely self-contained and has a simple DC input, and high level DC output.
System Performance
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Standard Ranges | ±200°/sec |
| Input Voltage | + and - 10 to 16 Vdc |
| Scale Factor | 0.025 Vdc/°/sec |
| Bias Stability | <6º/hr (In-Run at constant temp. Std. Dev.) |
| Output Noise | <0.1°/√ hour (<0.0017°/sec./√ Hz) |
| DC to 100Hz |
