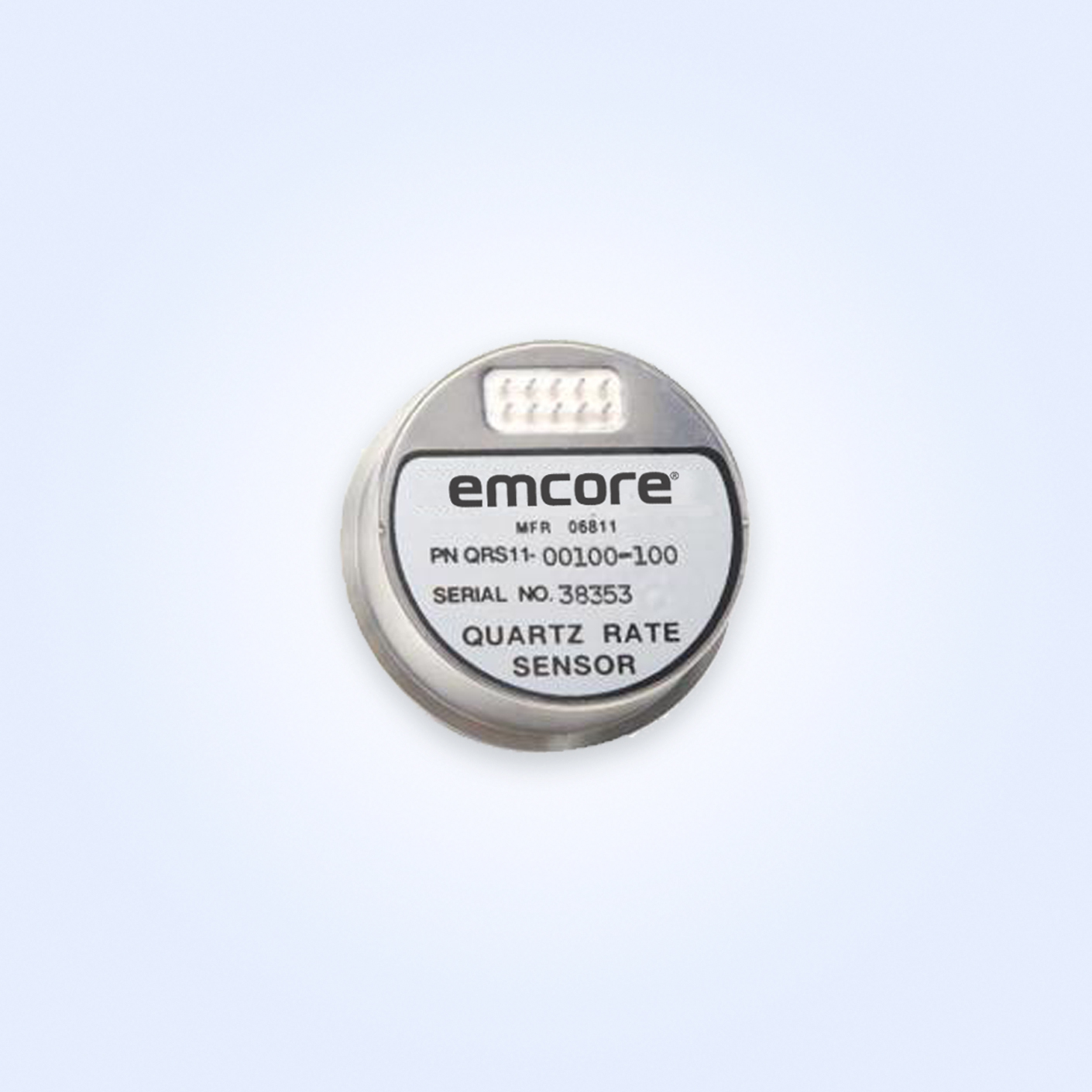

High-Performance Quartz MEMS Gyroscope
The QRS11 is a compact, lightweight design, that features Quartz MEMS technology providing a solid-state gyro offering virtually unlimited life. The QRS11’s combination of high performance and long life makes it well suited for OEM’s and system integrators designing cost-effective, high-performance systems.
The QRS11 requires only DC voltage inputs to provide reliable, extremely accurate angular rate measurements with the benefit of no moving parts. With a hermetically sealed sensing element, the QRS11 has provided reliable performance in aircraft, missile and space systems across many demanding application environments.
System Performance
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Standard Range | ±100°/sec |
| Input Voltage | + 5 Vdc ±3% regulation |
| Short Term Bias Stability** | < 0.01°/sec, typical * |
| Output Noise ( DC to 100 Hz) | < 0.01°/√Hz * |
| * ±100°/sec. Range | |
| ** Constant temperature |
Optional Accessories:
Tri-axis mounting bracket
Contact Factory
