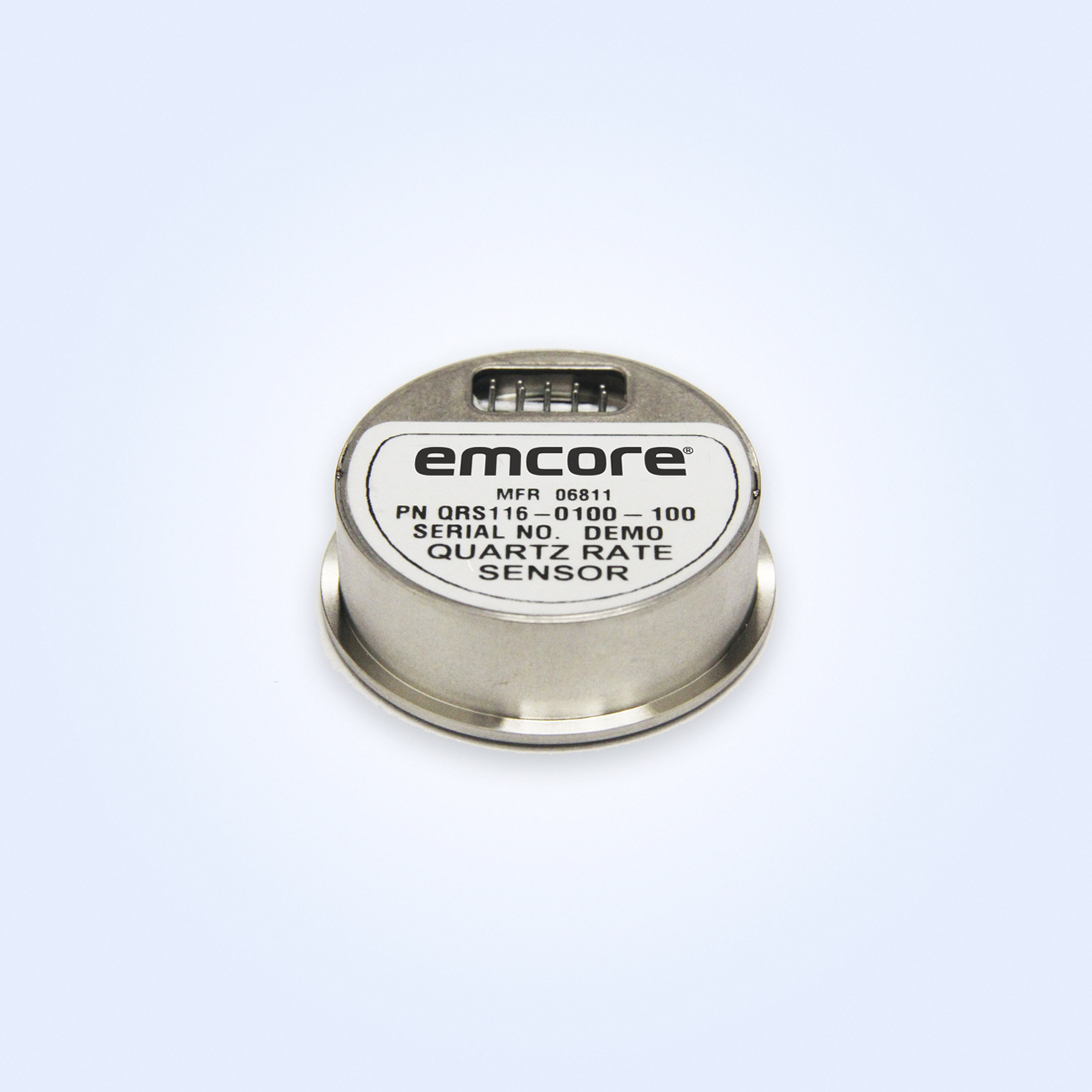

High-Performance Quartz MEMS Gyroscope
The QRS116 utilizes an advanced Quartz MEMS inertial sensing element which delivers ground-breaking levels of low angle random walk, bias stability and vibration performance. The QRS116 is a compact angular rate sensor ideally suited for applications in tactical, aerospace and mission-critical instrumentation.
The QRS116 features exceptionally low noise, fast start-up, and a simple electrical interface, the QRS116 has no moving parts ensuring long service life and high MTBF.
System Performance
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Standard Ranges | ±100°/sec |
| Input Voltage | + 5 Vdc ±5% regulation |
| Short Term Bias Stability (100 sec at const. temp) | 3 deg/hr |
| Output Noise ( DC to 100 Hz) | ≤ 0.002°/√Hz* |
| * Values Indicated are for ±100°/sec. Range |
Optional Accessories:
Tri-axis mounting bracket
Contact Factory
