Ideal for High-Precision Commercial & Industrial Applications

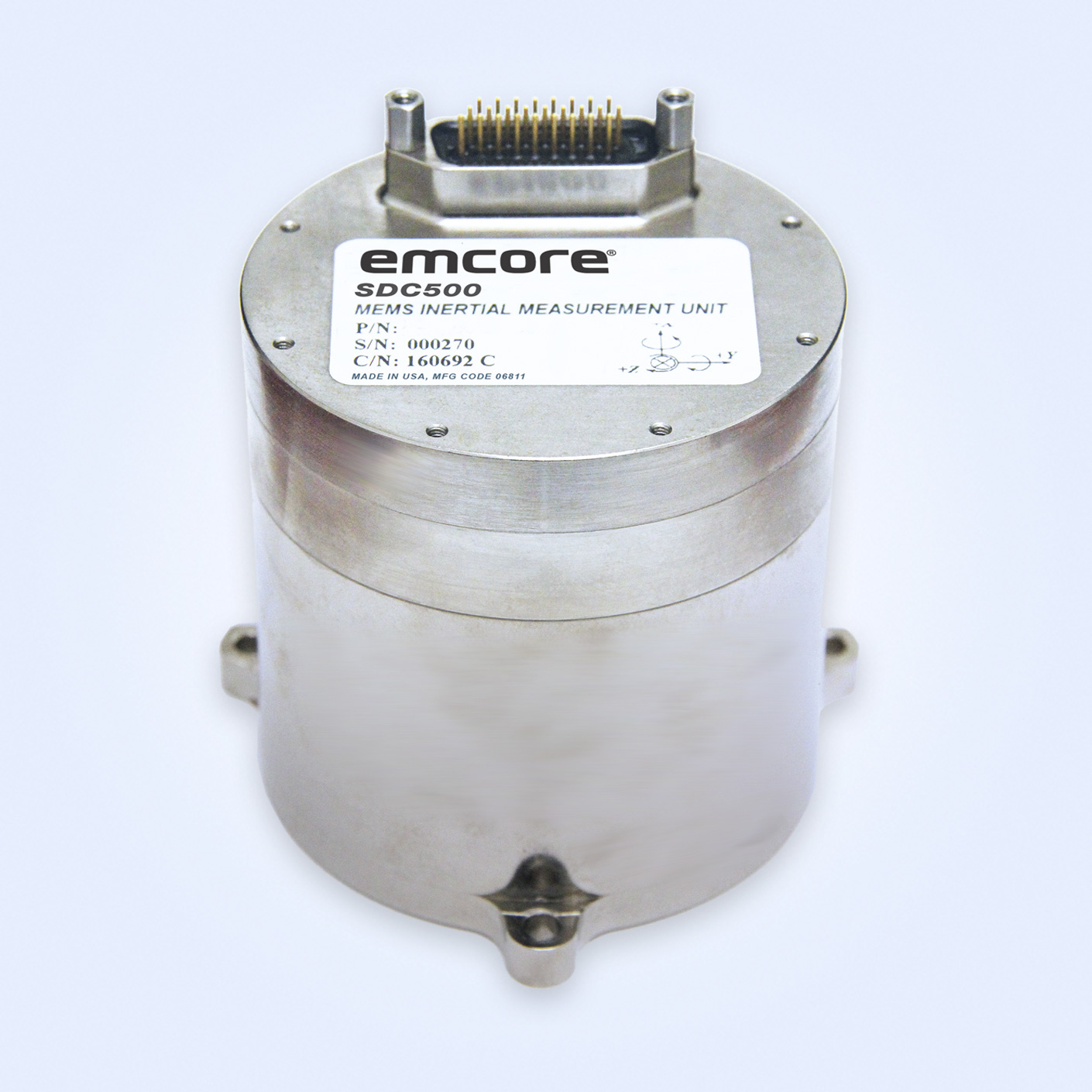

The compact SDC500 Quartz MEMS Inertial Measurement Unit (IMU) meets commercial aerospace, industrial and marine application needs globally. It is available in several performance-cost options ranging in accuracy from precision 1°/hr gyro and 1 mg accelerometer to 20°/hr gyro and 5 mg accelerometer bias over temperature, shock, and vibration environments. This enables customers to select the SDC500 version that meets their specific performance and budget requirements from near tactical grade to high-performance commercial/industrial grade. The SDC500 IMU is constructed with EMCORE’s latest generation quartz gyros, quartz accelerometers, and high-speed signal processing to achieve outstanding precision performance. The SDC500’s breakthrough gyro design retains Quartz MEMS sensitivity and linearity and greatly improves noise immunity.
The small, light, low-power, hermetically sealed SDC500 IMU provides industry-standard serial communication, configurable communications protocols, Time of Validity (TOV) sync, continuous Built-in Test (BIT), electromagnetic interference (EMI) protection, long MTBF and flexible input power compatibility making the SDC500 IMU easy to use in a wide range of challenging applications and operating environments.
| PARAMETERS | GYRO CHANNELS | ACCELERATION CHANNELS |
|---|---|---|
| Bias (Over Temperature) | 1°/hr - 20°/hr | 1.0 mg - 5.0 mg |
| Bias In-Run Stability | 1.0°/hr - 5.0°/hr | 150 μg - 400 μg |
| Random Walk Noise | 0.02°/√hr - 0.04°/√hr | 100 μg /√Hz - 200 μg /√Hz |
| Operating Temperature | -40 °C to +71 °C | -41 °C to +71 °C |
| Vibration (Operating) | 12g - 8g rms | 12g - 8g rms |
