Compact, Rugged Tactical Grade MEMS Inertial Measurement Unit

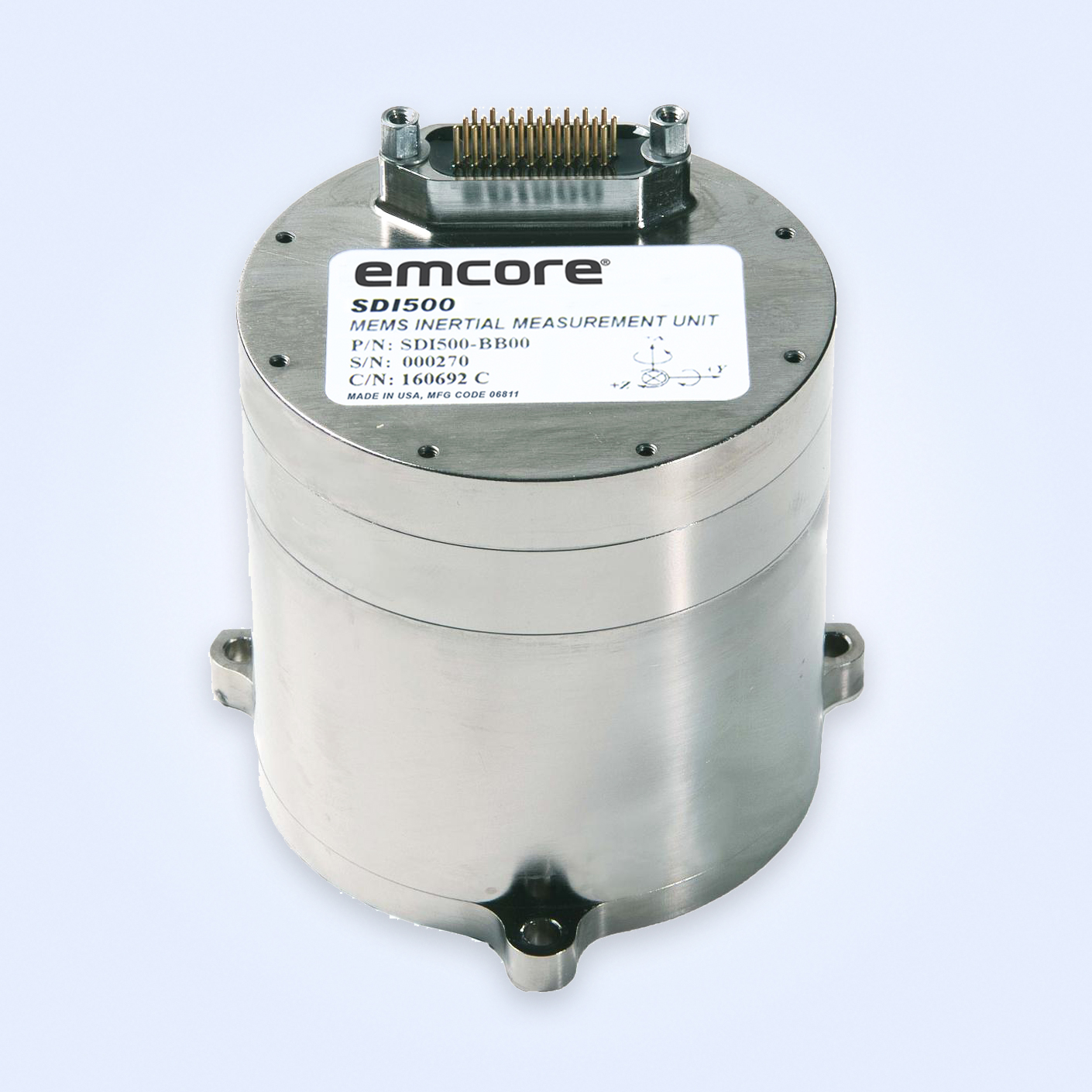

Leveraging industry’s leading MEMS technology to provide previously unheard of capabilities in angle random walk values (0.02°/√hr.) without loss of tactical grade levels across military environments, including 1°/hr. bias stability, the SDI500 is designed to achieve the demanding performance levels required in sophisticated systems applications. It is particularly suited for use by Integrators and OEMs, packaged in a highly miniaturized, cylindrical configuration with a volume of only 19 cubic inches. Boasting a 20-Year lifetime capability without requiring calibration and a MTBF of more than 100,000 hours, multiple output data formats and SDLC, RS232 and UART output interfaces are provided in this revolutionary IMU for optimized systems protocols.
| PARAMETERS | GYRO CHANNELS | ACCELERATION CHANNELS |
|---|---|---|
| Bias | 1°/hr - 10°/hr | 1.0 mg - 2.0 mg |
| Bias in run Stability (typical) | 1.0°/hr - 2.0°/hr | 100 μg |
| Random Walk Noise | 0.02°/√hr - 0.03°/√hr | 100 μg /√Hz - 120 μg /√Hz |
| Operating Temperature | -55 °C to +85 °C | -55 °C to +85 °C |
| Vibration (Operating) | 19g rms | 19g rms |
Power Requirements: Input Voltage: 10-42 Vdc
Optional Accessories:
SDI500 Hardware Developer’s Kit
• AC/DC Power Supply w/Coaxial Power Plug
• AC Power Cable
• DC/AC Automotive Power Inverter
• Main Interface Cable (Power & Communications)
• USB-Serial Adapter
• USB Cable
• Active Antenna / Compass
• USB Serial Adapter Software CD
• SDN500 CD
• Carrying Case
• SDLC/USB Interface
