Rugged, High-accuracy INS and AHRS with Exclusive PIC technology and Embedded GNSS

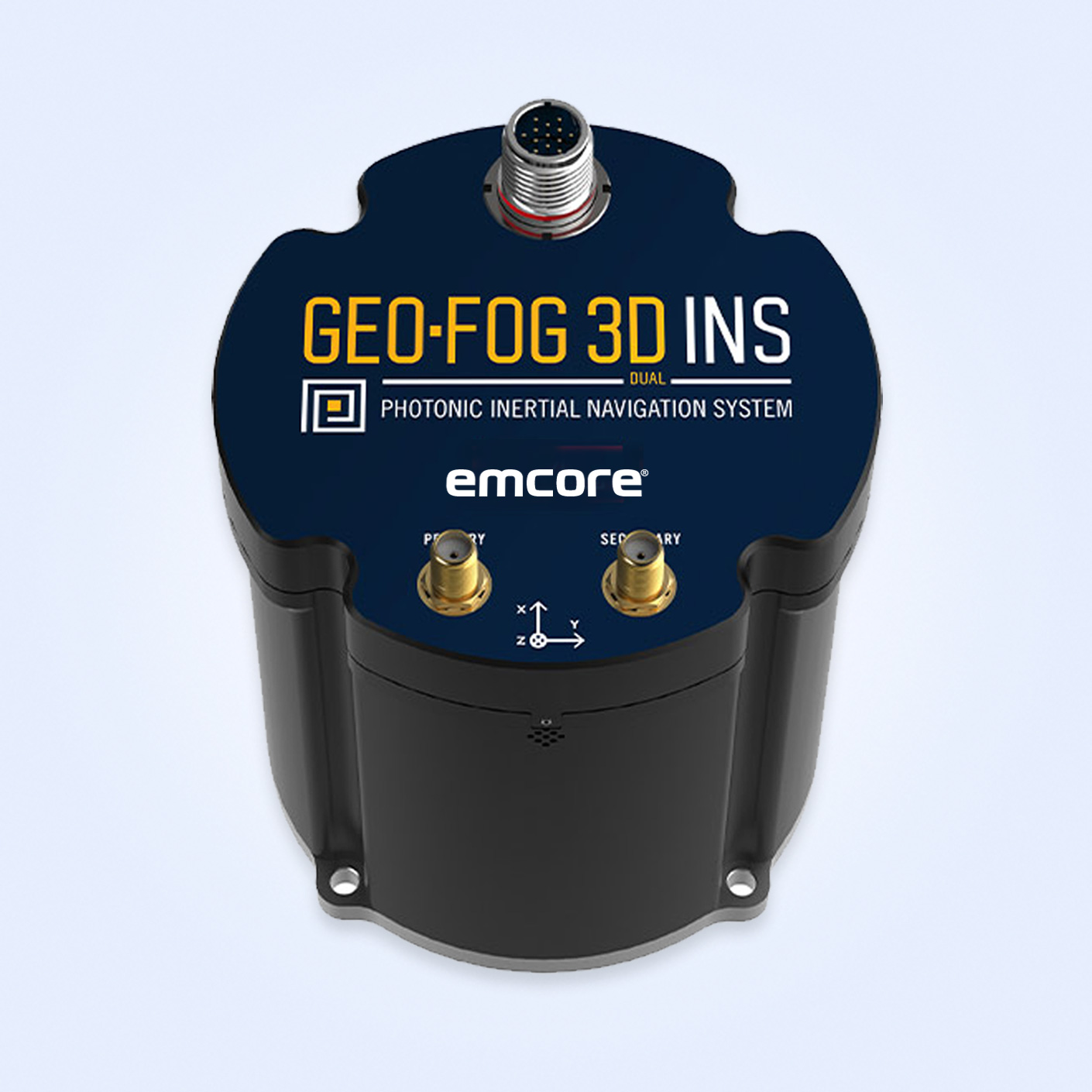

EMCORE's benchmark fiber optic gyro (FOG)-based P-1750 inertial measurement unit (IMU) is the core processor of the robust GEO-FOG 3D Dual INS. EMCORE’s exclusive photonic integrated chip (PIC) technology delivers improved reliability and repeatability. The precision non-ITAR GEO-FOG 3D Dual features two GNSS antennas on a fixed PTK baseline to offer increased heading, pitch, and roll accuracy for static and dynamic applications where a single antenna system can be problematic. This dual antenna INS is the best choice for systems requiring heading at start-up or in low dynamic conditions.
Highlights
- Data rate 10x faster than other available systems
- Cutting-edge sensor fusion for dependable, precise navigation in a full array of applications and conditions
- Six degrees of freedom (DoF) IMU with integrated gyros and accelerometers
Technology Details
Photonic Integrated Chip Technology
EMCORE’s new photonic integrated chip (PIC) technology reimagines FOG technology by replacing individual fiber components with an innovative integrated planar optic chip. This results in a FOG with PIC Inside™ that’s even more reliable and delivers superior repeatability unit-to-unit. With three of these integrated photonic gyros at its core, the P-1750 IMU enables the GEO-FOG to provide the safe, accurate performance autonomous platforms demand.
DSP Technology
EMCORE’s DSP electronics improve FOG performance in critical areas such as scale factor and bias vs. temperature, scale factor linearity, and maximum input rate. EMCORE’s exclusive DSP design overcomes the limitations of analog signal processing, eliminating temperature-sensitive drift and rotation errors.
GEO•FOG Manager
The GEO•FOG Manager is ideal when integrating EMCORE’s GEO•FOG 3D and GEO•FOG 3D Dual INS.
Developer’s Kit for Rapid Integration
The KVH FOG/IMU Developer’s Kit includes easy-to-use software to accelerate your IMU and FOG integration, development, and interface efforts.
